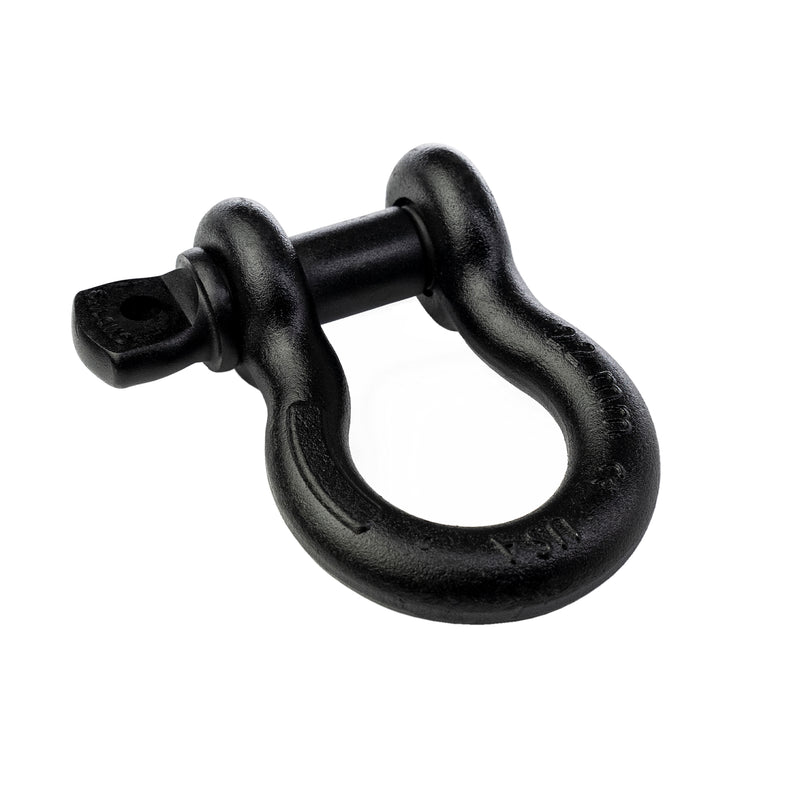

7/8" US Made D-Ring Shackle, 8 1/2 ton WLL w/ Powder Coat finish

This D-Ring is used with our 2.5" Shackle Blocks

Columbus McKinnon (CM) Super Strong Screw Pin Anchor Shackles are carbon-type shackles with strength ratings that are 17 to 50% stronger than comparable sized carbon shackles. As a result, these shackles are designed with a 6:1 design factor.

  • Size (Shackle Body Thickness): 7/8"
  • Working Load Limit (WLL): 8.50 tons (17,000 lbs.)
  • 6:1 design factor
  • Pin Size: 1"
  • Pin Type: Screw Pin
  • Material: Micro Alloy Steel Body & Alloy Steel Pin
  • Finish: Black powder coat
  • Working load limit and traceability codes shown as permanent markings on body
  • Manufactured from technically advanced domestic (USA) micro alloy steel with optimal hardness for strength and ductility
  • Alloy quenched and tempered pins
  • Made in the USA

D-Ring Dimensions
